- SKU: ROG STRIX B550-F GAMING WIFI II
- CÓDIGO DE BARRAS: 4711081453314
- PROVEEDOR: ASUS
- TIPO: Tarjetas Madre

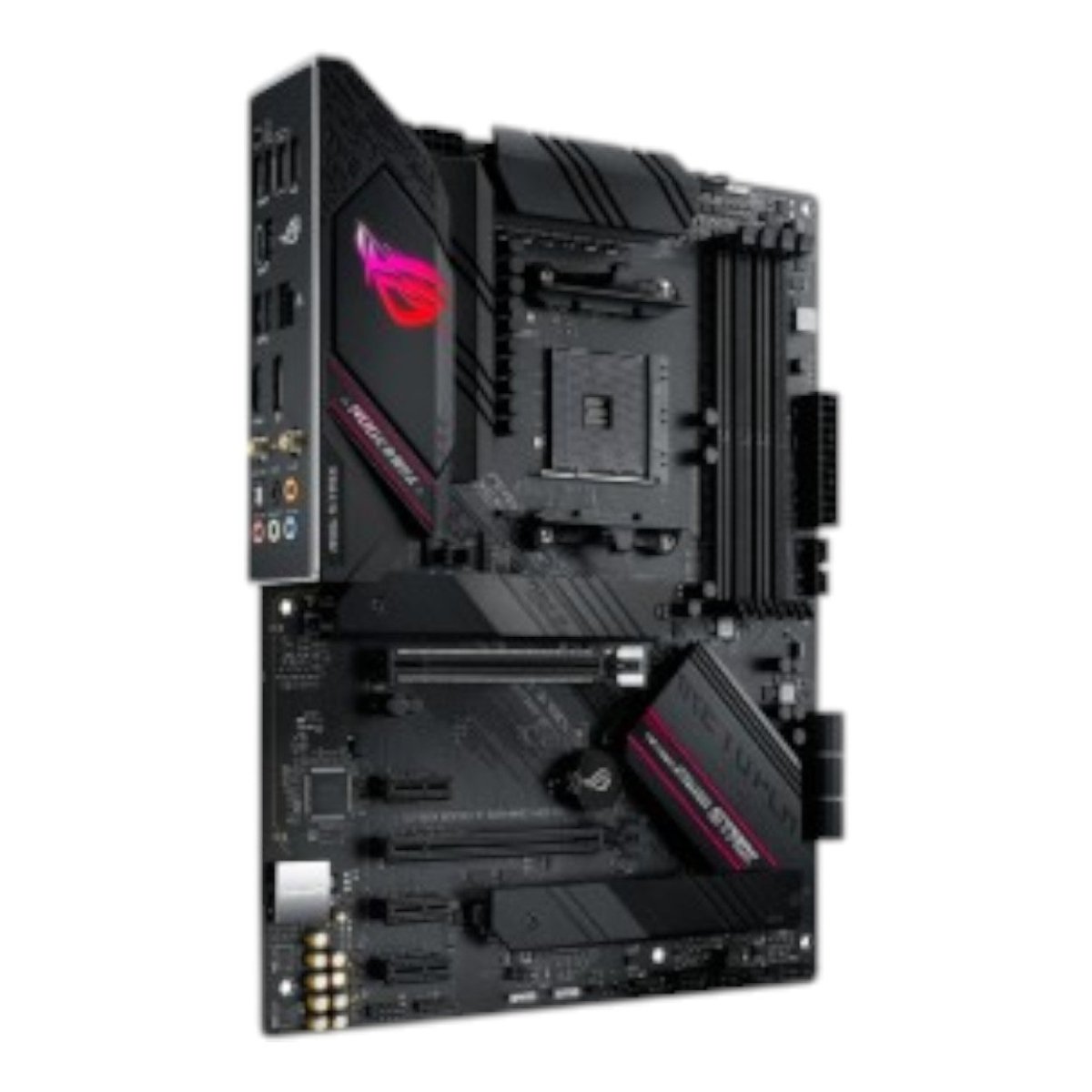

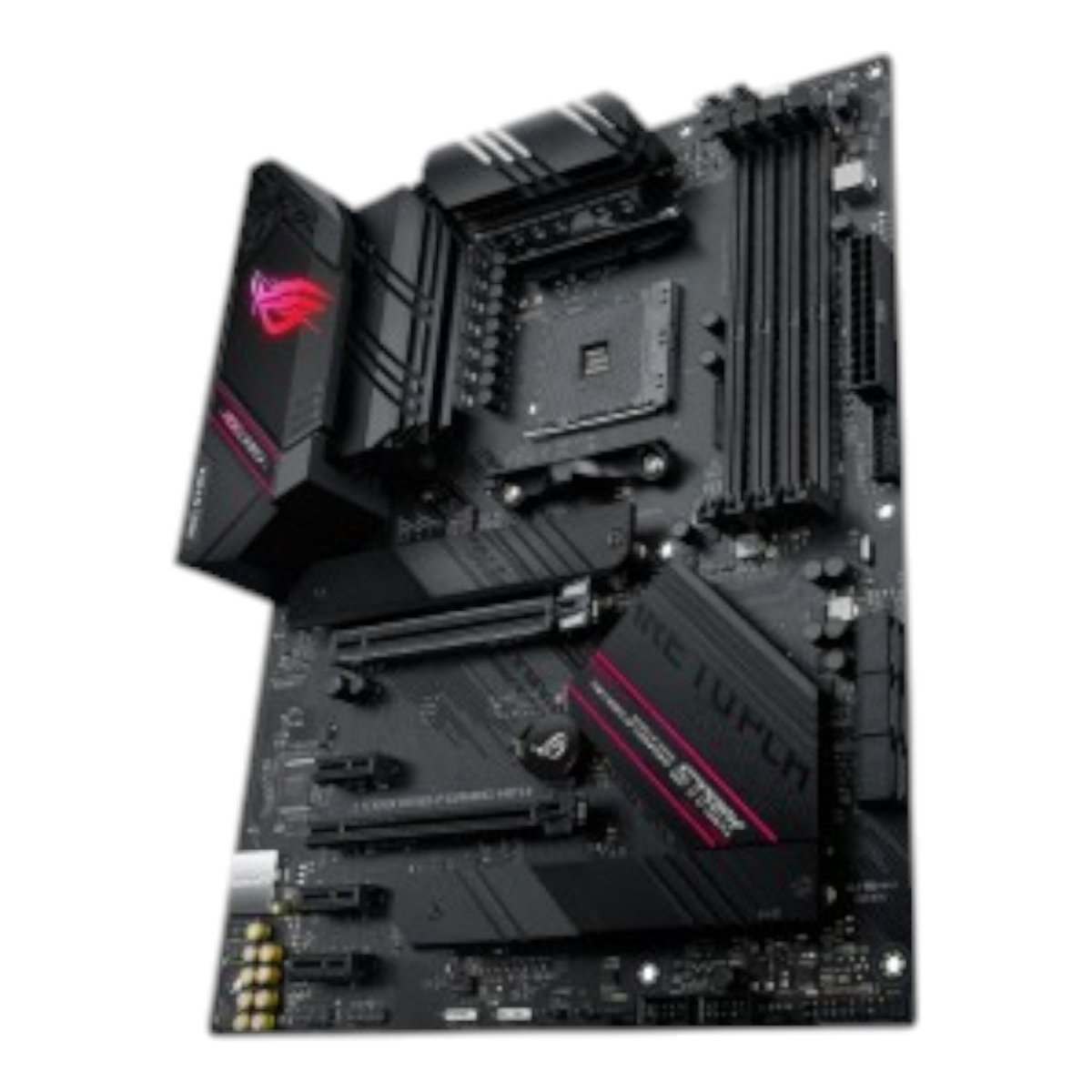

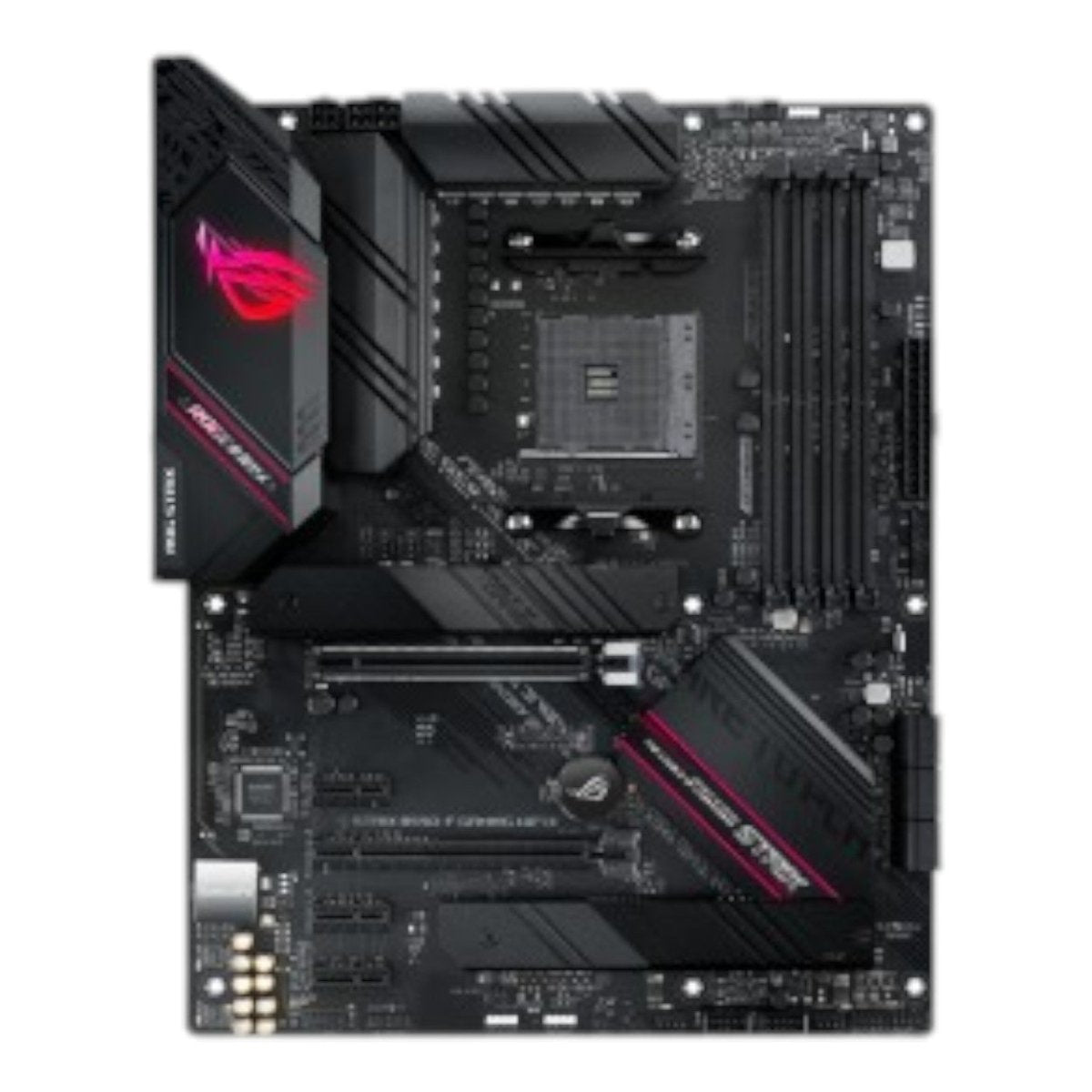

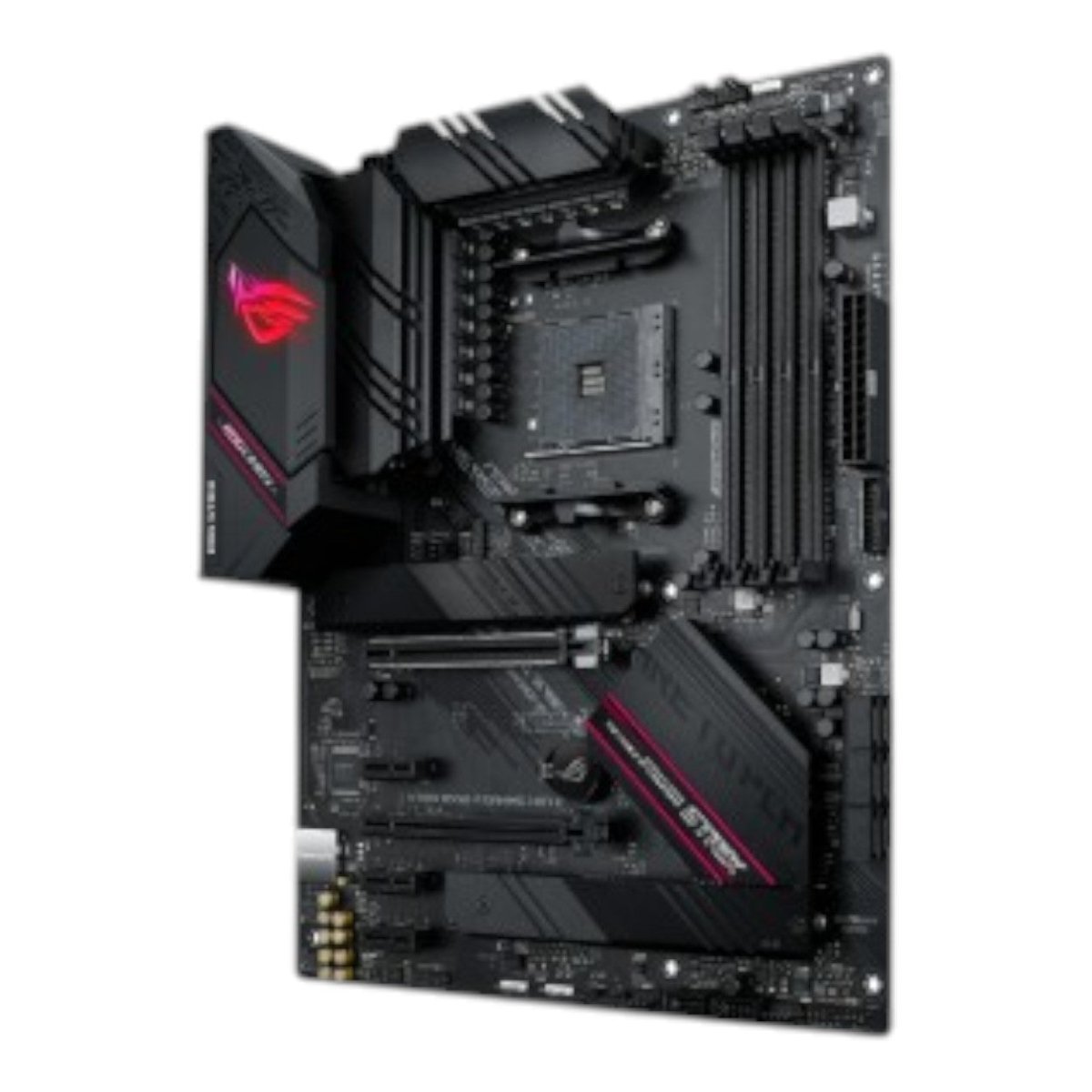

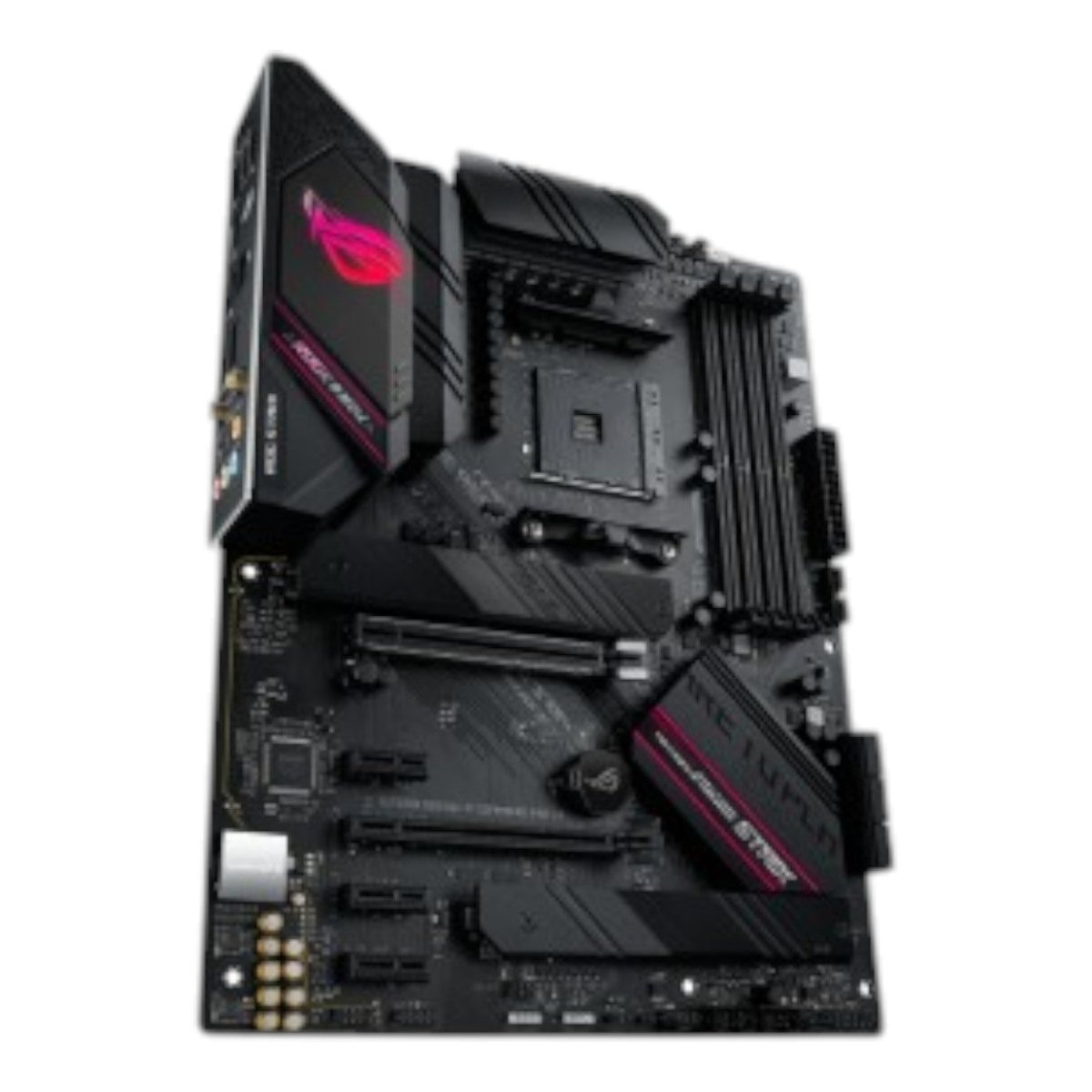

Tarjeta Madre Asus Rog Strix B550-F Gaming Wifi Ii Ddr4-Sdram 128 Gb Amd Zócalo Am4 Atx
Impuestos incluidos.
Envío calculado al finalizar la compra.
No se pudo cargar la disponibilidad de recogida
Precios en pesos mexicanos IVA incluido
Tarjeta Madre ASUS ROG STRIX B550-F GAMING WIFI II, DDR4-SDRAM, 128 GB, AMD, Zócalo AM4, ATX
Modelo: ROG STRIX B550-F GAMING WIFI II
Marca: Asus
Tarjeta Madre ASUS MB ASUS ROG STRIX B550-F GAMING WIFI II CPU Procesadores de escritorio AMD Ryzen™ Serie 5000/ Serie 5000 G/ Serie 4000 G/ Serie 3000/ Serie 3000 G/ Serie 2000/ Serie 2000 G * Consulte www.asus.com para ver la lista de soporte de CPU. conjunto de chips X570 Memoria Canales de memoria: 4DDR4 (Doble canal) Tamaño máximo de memoria: 128GB Procesadores de escritorio AMD Ryzen™ Serie 5000/ Serie 3000 4 módulos DIMM, máx. 128 GB, DDR44600(OC)/ 4400(OC)/4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400( OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/2133, memoria sin búfer el soporte de frecuencia de memoria depende de los tipos de CPU. Gráficos 1 puerto de visualización 1 x puerto HDMI® - Soporta HDMI 2.0b con resolución máxima de 4096 x 2160 @ 60 Hz - Admite DisplayPort 1.2 con máx. resolución 4096 x 2160 a 60 Hz * El soporte de resolución VGA depende de la resolución de los procesadores o tarjetas gráficas. Para obtener más detalles sobre la configuración de entrada y salida de video, consulte el manual del usuario. Ranuras de expansión Procesadores de escritorio AMD Ryzen Serie 5000/ Serie 3000 2 x PCIe 4.0 x16 (x16 o doble x8)* Procesador AMD Ryzen™ serie 5000 G/serie 4000 G/serie 2000 2 x PCIe 3.0 x16 (x16 o doble x8)* Procesador AMD Ryzen™ Serie 2000 G/ Serie 3000 G 1 x PCIe 3.0 x16 (modo x8) 1 x ranura PCIe 4.0 x16 (admite modo x4) 2x PCIe 4.0x1 *La ranura PCIeX16_3 comparte el ancho de banda con PCIeX1_2. Almacenamiento Admite 2 ranuras M.2 y 8 puertos SATA de 6 Gb/s Procesadores de escritorio AMD Ryzen™ Serie 5000/ Serie 3000: Ranura M.2_1 (clave M), tipo 2242/2260/2280/22110 (admite modos PCIe 4.0 x4 y SATA) Procesador AMD Ryzen™ serie 5000 G/serie 4000 G/serie 3000 G/serie 2000 G/serie 2000 Ranura M.2_1 (clave M), tipo 2242/2260/2280/22110 (admite modos PCIe 3.0 x4 y SATA) Conjunto de chips AMD X570 Ranura M.2_2 (clave M), tipo 2242/2260/2280/22110 (admite modos PCIe 4.0 x4 y SATA) 8 puertos SATA 6Gb/s Soporta RAID 0, 1, 10 LAN 1 x Ethernet Intel® de 1 Gb 1 Ethernet Realtek de 2,5 Gb 1 x Ethernet Intel® I211-AT de 1 Gb LANGuard antisobretensiones Tecnología ROG GameFirst Red de datos inalámbricos WiFi 6E 2x2 WiFi 6E (802.11a/b/g/n/ac/ax) Admite banda de frecuencia de 2,4/5/6 GHz* Bluetooth v5.2 * La regulación de WiFi 6E 6GHz puede variar entre países, y la función estará lista en Windows 11 o posterior.
CPU
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
*Refer to www.asus.com for the AMD® CPU support list.
Chipset
B550
Memoria
Memory Channels:4DDR4 (Dual channel)
Max Memory Size:128GB
AMD Ryzen™ 5000 and 3000 Series Desktop Processors
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4666(O.C.)/4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory *
AMD Ryzen™ 5000 and 4000 G-Series Processors
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory *
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Gráficos
1 x DisplayPort 1.2
1 x HDMI® 2.1
*Graphics specifications may vary between CPU types.
Ranuras de expansión
AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors
1 x PCIe 4.0 x16 SafeSlot (supports x16 mode)
AMD B550 chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
3 x PCIe 3.0 x1 slots
*Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3
Almacenamiento
Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD B550 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
6 x SATA 6Gb/s ports
Support RAID 0, 1, 10
* When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled.
LAN
1 x Intel® 2.5Gb Ethernet
1 x Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
Red de datos inalámbrica
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
Puertos USB
Rear USB:Total 8 ports
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports
Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
- Impedance sense for front and rear headphone outputs
- Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Dual OP Amplifiers
- Premium audio capacitors
- Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 8-Channel audio.
Puertos del panel trasero
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports
1 x Wi-Fi Module
1 x DisplayPort
1 x HDMI® port
1 x Intel® I225-V 2.5G Ethernet
1 x Optical S/PDIF out
5 x Audio jacks
1 x BIOS FlashBackTM button
Puertos E/S internos
Fan and cooling related
1 x 4-Pin AIO_Pump header
1 x 4-Pin CPU fan header
1 x 4-Pin CPU_OPT fan header
3 x 4-Pin Chassis fan headers
Power related
1 x 24-pin main power connector
1 x 8-pin +12V power connector
1 x 4-pin +12V power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front panel audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal sensor header
1 x Thunderbolt™ header
Características especiales
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
- ASUS Q-Slot
ASUS Thermal Solution
- M.2 heatsink
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS header
- ProCool
- Pre-mounted I/O shield
- SafeSlot
Software Features
ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software Features
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Two-Way AI Noise Cancelation
AI Suite 3:
- Performance And Power Saving Utility
EPU
DIGI+ VRM
Fan Xpert 4
TurboV EVO
- EZ update
WinRAR
DAEMON Tools
Norton Anti-virus software (Free Trial version)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
1 x Addressable RGB extension cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Rubber Package
1 x M.2 SSD screw package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x Support DVD
Documentation
1 x User manual
Sistema operativo
Windows® 11, Windows® 10 64-bit
Factor de forma
ATX
30.5cm x 24.4cm
